SECT. SPZ

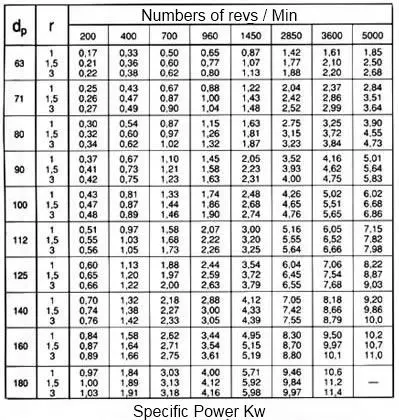

Table of the approximate values of the specific powers Sp transmittable by each belt of length L= 1600 mm., angle of wrap ß=180° depending on the speed of rotation of the smallest pulley in revs /min for some transmission ratios.

tab_9su_en


SECT. Z

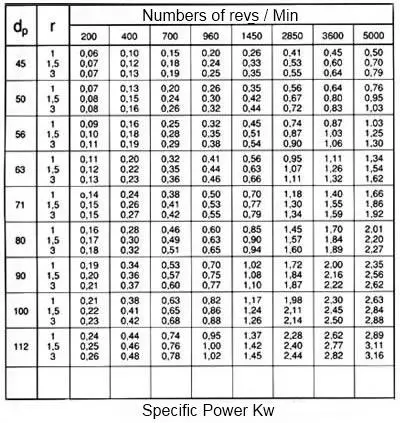

Table of the approximate values of the specific powers Sp transmittable by each belt of length L = 800 mm., angle of wrap ß= 180° depending on the speed of rotation of the smallest pulley in revs /min for some transmission ratios.

tab_9giu_en
