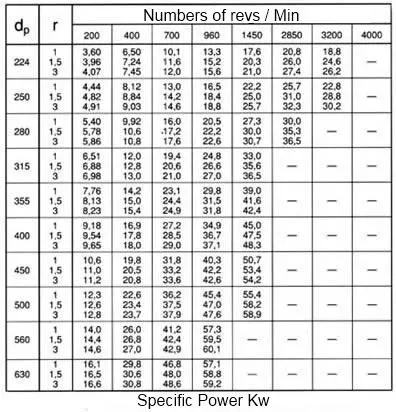

SECT. SPC

Table of the approximate values of the specific powers Sp transmittable by each belt of length L = 5600 mm., angle of wrap ß= 180° depending on the speed of rotation of the smallest pulley in revs /min for some transmission ratios.

tab_12su_en

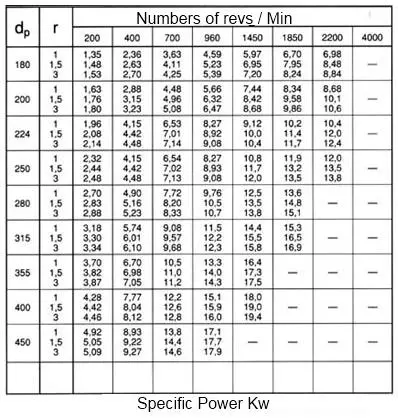

SECT. C

Table of the approximate values of the specific powers Sp transmittable by each belt of length L = 3750 mm., angle of wrap ß=180° depending on the speed of rotation of the smallest pulley in revs /min for some transmission ratios.

tab_12giu_en



Page 12 of 12
