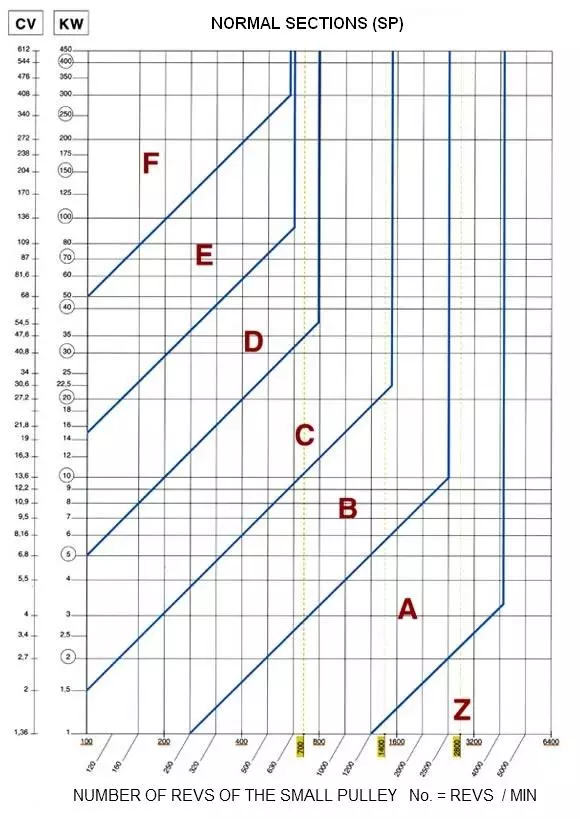

FUNCTIONAL DIAGRAM (POWER - No. OF REVS)

Use of the diagram proves necessary to select the most suitable section to transmit a given power (P) expressed in KW or in HP depending on the number of revs of the smallest pulley.
